MODEL：DSR-10AZ

POWER：7.5kW

HORSEPOWER：10HP

Product desciption

◆ Voltage: 380V/50HZ. 7.5A、10A are direct startup, above 15A is star triangle start
◆ Other pressure (up to 16bar) screw air compressor, welcome to negotiate
◆ The company continuously improves the products and retains the right to change the design.Parameters are subject to change without prior notice
◆ A after the model represents air cooling and W represents water cooling

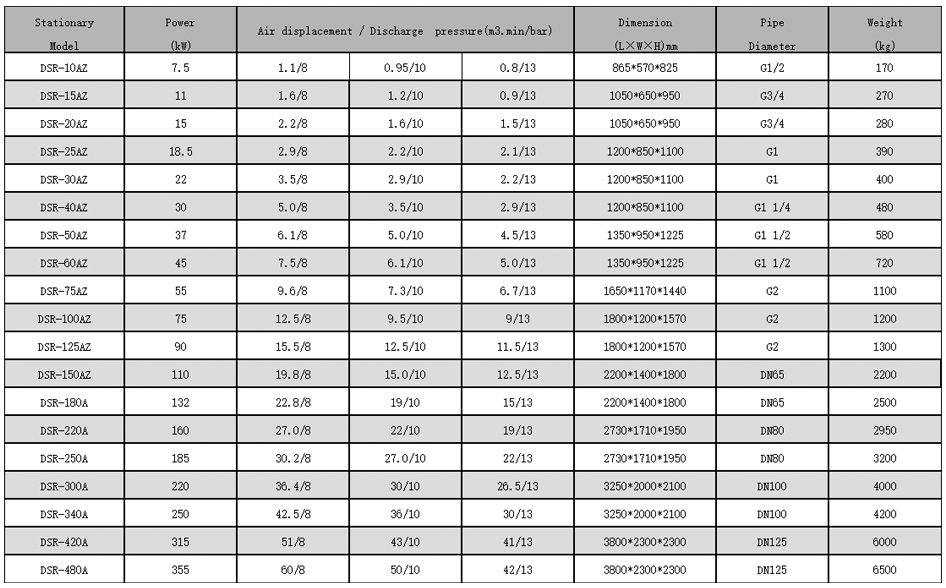

Technical parameters of direct driven screw air compressor

Stationary Model	Power (kW)	Air displacement / Discharge pressure(m3.min/bar)			Dimension (L×W×H)mm	Pipe Diameter	Weight (kg)
DSR-10AZ	7.5	1.1/8	0.95/10	0.8/13	865570825	G1/2	170
DSR-15AZ	11	1.6/8	1.2/10	0.9/13	1050650950	G3/4	270
DSR-20AZ	15	2.2/8	1.6/10	1.5/13	1050650950	G3/4	280
DSR-25AZ	18.5	2.9/8	2.2/10	2.1/13	12008501100	G1	390
DSR-30AZ	22	3.5/8	2.9/10	2.2/13	12008501100	G1	400
DSR-40AZ	30	5.0/8	3.5/10	2.9/13	12008501100	G1 1/4	480
DSR-50AZ	37	6.1/8	5.0/10	4.5/13	13509501225	G1 1/2	580
DSR-60AZ	45	7.5/8	6.1/10	5.0/13	13509501225	G1 1/2	720
DSR-75AZ	55	9.6/8	7.3/10	6.7/13	165011701440	G2	1100
DSR-100AZ	75	12.5/8	9.5/10	9/13	180012001570	G2	1200
DSR-125AZ	75	13.3/0.8	11.6/1.0	9.8/1.3	180012001570	G2	1200
DSR-150AZ	90	16.0/0.8	14.6/1.0	12.3/1.3	180012001570	G2	1300
DSR-180A	110	20.6/0.8	17.0/1.0	14.2/1.3	238016501900	DN65	2200
DSR-220A	132	24.0/0.8	20.6/1.0	16.5/1.3	238016501900	DN65	2300
DSR-250A	160	27.0/0.8	23.2/1.0	19.7/1.3	290018001950	DN80	3100
DSR-300A	185	30.2/0.8	27.0/1.0	22.5/1.3	290018001950	DN80	3200
DSR-340A	220	36.4/0.8	33.1/1.0	30.5/1.3	325020002100	DN100	4000
DSR-420A	250	42.5/0.8	38.8/1.0	34.6/1.3	325020002100	DN100	4200
DSR-480A	315	53/0.8	49/1.0	43/1.3	475020502300	DN125	5500
