The supercharger series is an ideal choice for large-displacement medium-pressure systems. The products feature stable and reliable performance, and can boost the pressure from 0.8 - 1.0 megapascals to 3.0- 6.0 megapascals.

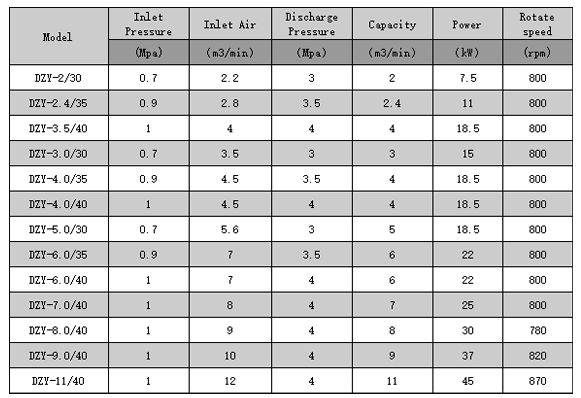

Model
|
Inlet Pressure
|
Inlet Air
|
Discharge Pressure
|
Capacity
|
Power
|
Rotate speed
|
|
(Mpa)
|
（m3/min）
|
（Mpa）
|
（m3/min）
|
（kW）
|
(rpm)
|
|
DZY-2/30
|
0.7
|
2.2
|
3.0
|
2.0
|
7.5
|
800
|
|
DZY-2.4/35
|
0.9
|
2.8
|
3.5
|
2.4
|
11.0
|
800
|
|
DZY-3.5/40
|
1.0
|
4.0
|
4.0
|
4.0
|
18.5
|
800
|
DZY-3.0/30
|
0.7
|
3.5
|
3.0
|
3.0
|
15.0
|
800
|
|
DZY-4.0/35
|
0.9
|
4.5
|
3.5
|
4.0
|
18.5
|
800
|
DZY-4.0/40
|
1.0
|
4.5
|
4.0
|
4.0
|
18.5
|
800
|
|
DZY-5.0/30
|
0.7
|
5.6
|
3.0
|
5.0
|
18.5
|
800
|
DZY-6.0/35
|
0.9
|
7.0
|
3.5
|
6.0
|
22.0
|
800
|
|
DZY-6.0/40
|
1.0
|
7.0
|
4.0
|
6.0
|
22.0
|
800
|
DZY-7.0/40
|
1.0
|
8.0
|
4.0
|
7.0
|
25.0
|
800
|
|
DZY-8.0/40
|
1.0
|
9.0
|
4.0
|
8.0
|
30.0
|
780
|
DZY-9.0/40
|
1.0
|
10.0
|
4.0
|
9.0
|
37.0
|
820
|
|
DZY-11/40
|
1.0
|
12.0
|
4.0
|
11.0
|
45.0
|
870
|
The supercharger series is an ideal choice for large-displacement medium-pressure systems. The products feature stable and reliable performance, and can boost the pressure from 0.8 - 1.0 megapascals to 3.0- 6.0 megapascals.
